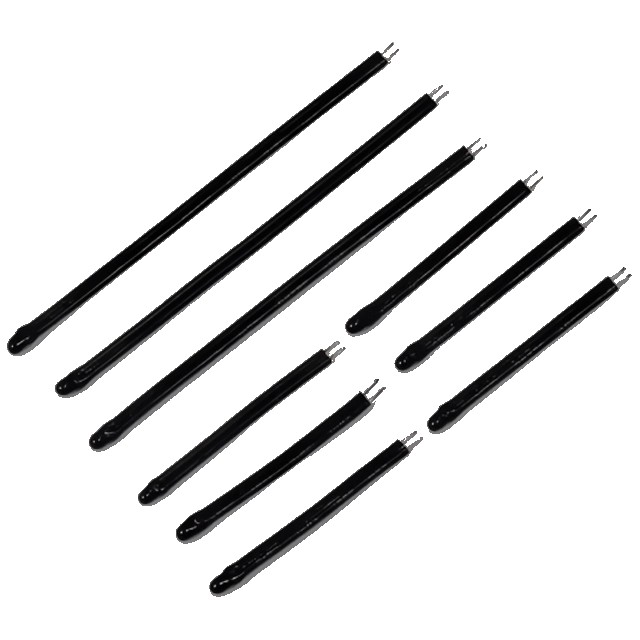

MF52D drop bead type PVC wire small NTC thermistor

Introduce

Durable epoxy coating with insulated PVC leads, designed for ambient temperature sensing in heating elements and household appliances.

Inquiry

A^-A⁺

Parameter Inquiry

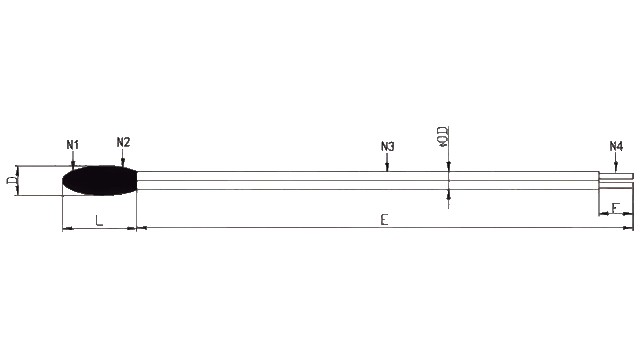

Unit	D	L	E	F	ϕOD	G
mm	3.0	4.0	80	3.0	2.4	/

FEATURES INTRODUCTION

1.MF52D series products are double-parallel PVC resin coating type

2.Wide resistance range:1~500KQ

3.High resistance accuracy

4.High temperature measurement accuracy,up to ±0.2℃

5.Small size,4S response speed

6.The product is cost-effective

7.Able to work stably for a long time

8.Operating temperature range-40~+105℃

9.PVC double parallel wire

10.The shortest product can be 30mm (total length includes head)

SCOPE OF APPLICATION

Power tools,heating clothes,mobile power supplies,lithium batteries,car wirelesschargers,hand warmers,and other plug-ins,batteries and various power supplytemperature protection.
